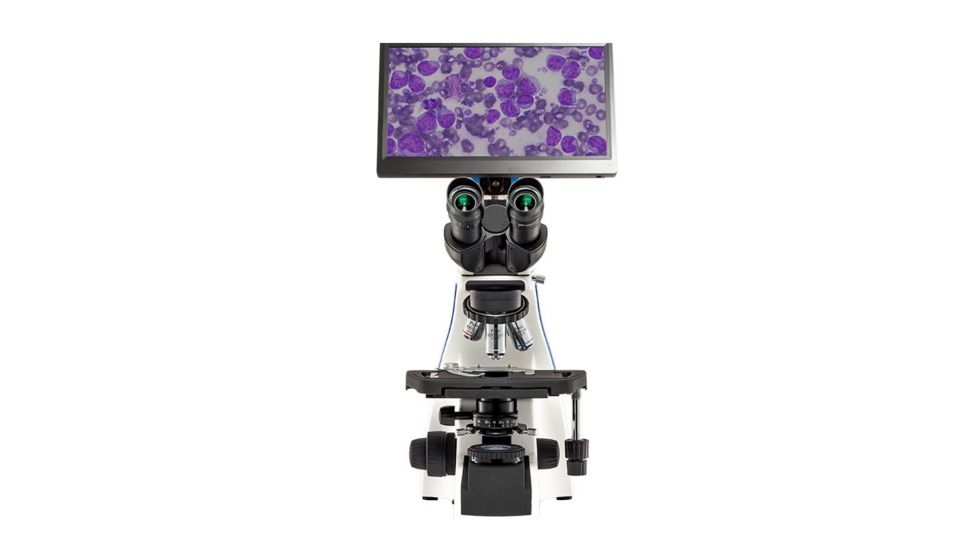

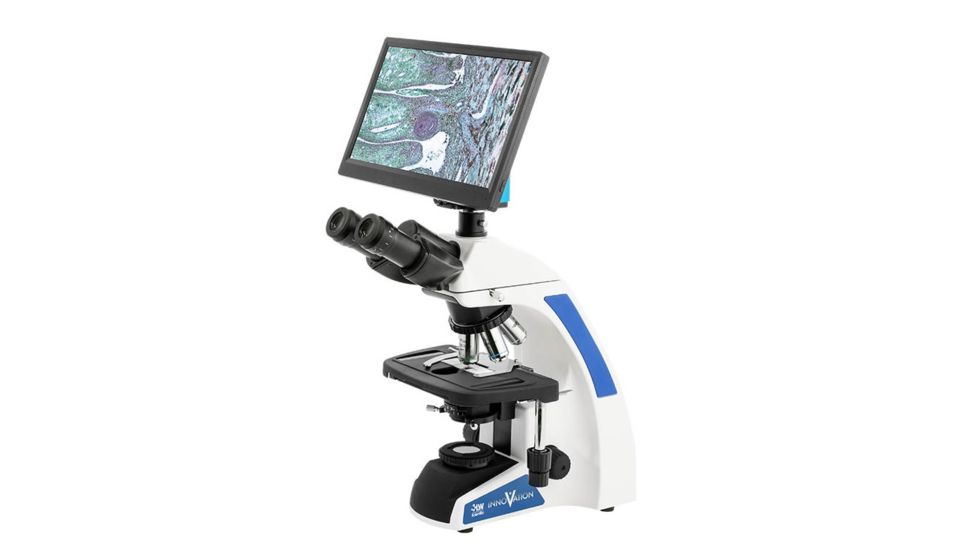

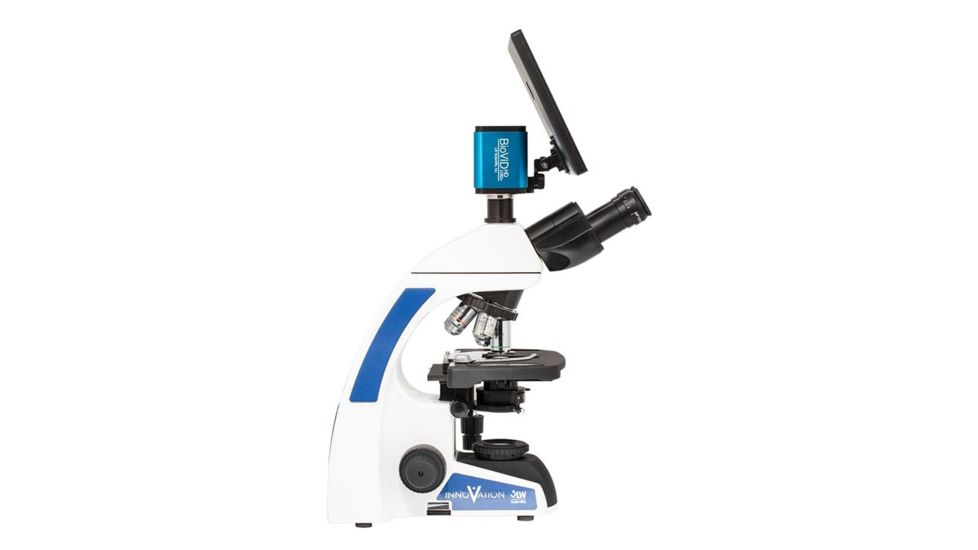

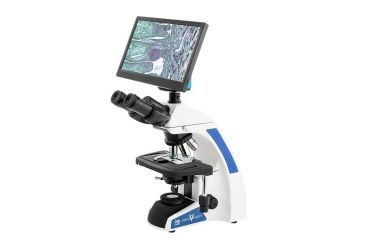

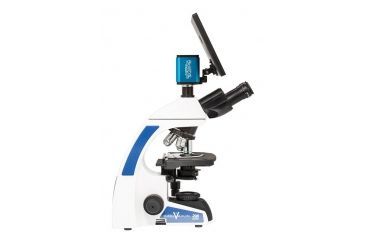

Name: LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor
Brand: LW Scientific
SKU: 24T-MI-INMSCM
Availability: Discontinued

Product Info for LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor

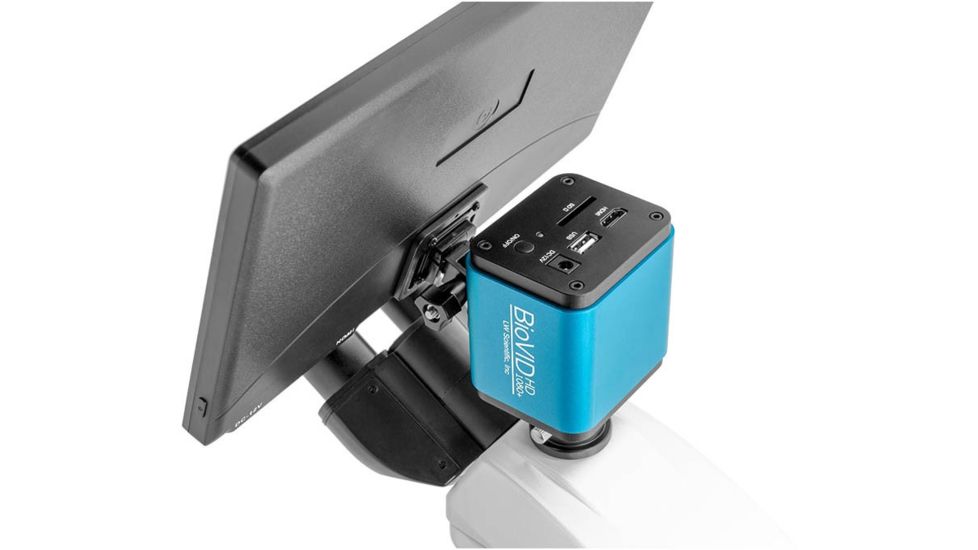

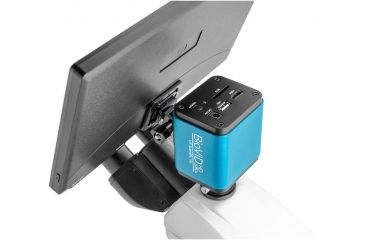

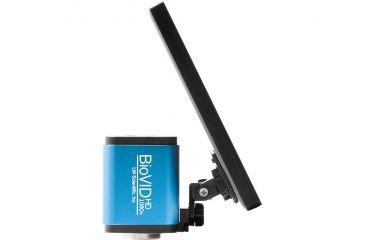

The BioVIEW microscope camera and monitor is the essential tool for live presentations and client education. The premium BioVID HD1080+ camera paired with the 1080p 11.6" HD Monitor provides a bright and beautiful image. Simply mount the camera onto any trinocular C-mount for amazing resolution and fast-action video (60fps). Using the included mouse and SD card, click to save and view images and videos...even view side-by-side comparisons.

Whether in a large lecture hall, a classroom, the laboratory, or the clinic, the BioVID HD 1080+ will ensure clients and students see microscope images clearly.

Ideal for a wide variety of applications:

Research, Teaching, & Demonstration
Pathology, Cytology, Oncology, Hematology, Semen Evaluation
Dental Applications
Industrial & Manufacturing

Specifications for LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor:

BioVIEW MONITOR SPECIFICATIONS:
Display:	Panasonic super TFT LCD
Resolution:	True 1080p
Color:	16.7 million
High contrast:	Ratio up to 1,000
Backlight:	LED with 50000 hours lifetime
View Area:	11.6-inch active
Viewing:	IPS full wide-angle
OPERATING CONDITIONS:
Operating Temp:	-15º to 55º C
Humidity:	10-90%
Synchronization Range:	30-80 KHz horizontal 55-75 Hz vertical
Power Supply:	AC 110v-220v auto-switching input DC 12v /1a output
Power Consumption:	Max 12w
PERFORMANCE:
Input:	HDMI
Resolution:	1920 x 1080
Display Type:	16
Contrast Ratio:	1,000
Colors:	16.7 million
View Angle:	IPS full view
Display Area:	258mm W x 145mm H
Pixel Pitch:	0.134mm W x 0.134mm H
Brightness:	350 CD/sq.m
Back Light:	5,000 hours
Dimensions:	281mm L x 179mm H x 15.6mm D
Weight:	400g

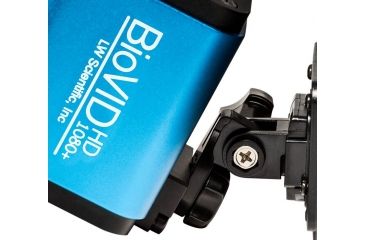

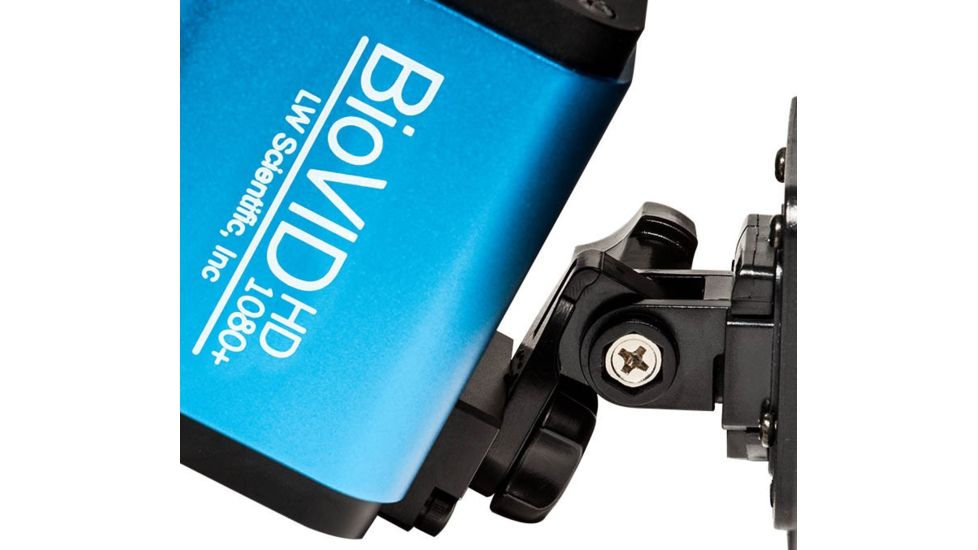

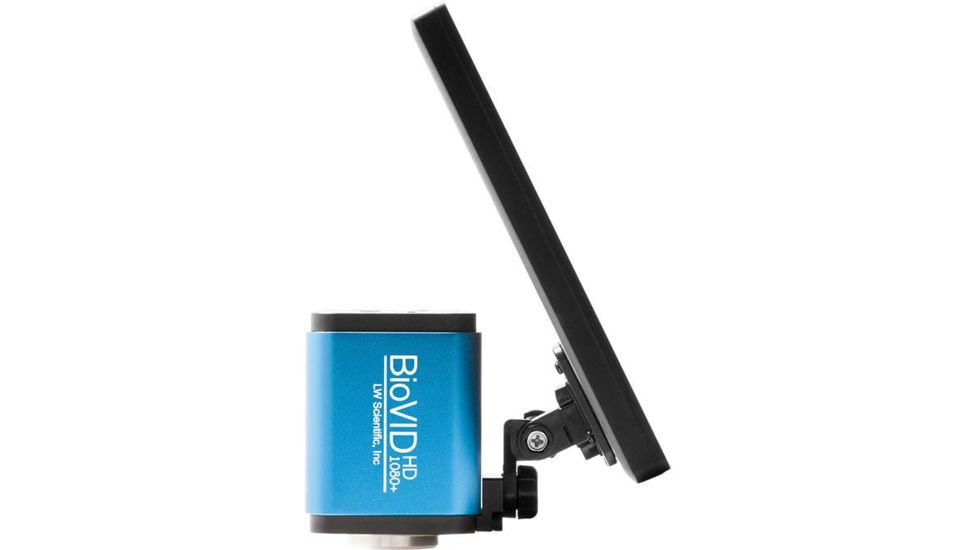

BioVID HD 1080+ CAMERA SPECIFICATIONS:
Resolution:	1920x1080
Image Sensor:	1/2.8" (5.5x3.4mm) Sony IMX236(C) CMOS color
Pixel size:	2.8um x 2.8um
Auto-Exposure:	0.1ms-999ms
Power:	UL/CE approved power adapter
AC Input:	100-240Vac 50/60Hz, 0.31A (Auto-switching power adapter)
DC Output:	12V, 1.0 amp
OPERATING CONDITIONS:
Temperature:	-10°C ~ 50°C (14°F to 122°F)
Humidity:	30-80%RH
CONNECTION AND CONTROLS:
USB Port:	USB computer cable or USB mouse
HDMI Port:	HDMI cable to TV
DC 12v Jack:	12v DC power in
SD Slot:	For included SD card
ON/OFF:	Power button
LED Light:	Red=off, Blue=on
REQUIREMENTS:
Operating System:	Microsoft Windows XP,Vista, 7, 8, 10 (32 & 64
bit), Mac OSX, Linux:
CPU:	Intel Core2 2.5 or higher
Memory:	> 4GB
USB:	2.0 High-speed port
VIDEO OUTPUT:
HDMI:	User interface
Video:	60 frames per second @ 1920x1080 (HDMI). On screen-camera control panel and tool bar.
USB:	Includes software for capturing, rotating,measuring, etc.
Image/video capture into PC, Image capture into Mac Video:	30 frames per second @ 1920x1080 (USB) White balance and standard color controls
Optional Accessory:	Eyetube adapter Part# MVP-ADAO-ETMC for use with trinocular microscopes without a c-mount)

Features of LW Scientific Innovation Biological Infinity Microscope LED:

HEAD
Trinocular (Seidentopf)
Digital camera and monitor
Diopter adjustment +/-5 (built into each eyepieces)
Inclined 30°, rotates 360°
10X/22 Super Widefield High Eyepoint eyepieces
(15X/16 eyepieces available)
30mm eyetube
Interpupillary distance range 48-75mm
NOSE PIECE
Reverse quadruple
Multiple ball bearing mounted
OBJECTIVES
Infinity High Contrast Plan objectives
4X, 10X, 40XR, 100XR (oil)
Anti-fungal, parfocal, parcentric, color-coded
STAGE
Double Layer Mechanical Stage (216mm X 150mm)
Graphite-Coated Surface
Coaxial drive controls, rackless
Range of traverse: 75mm x 55mm
Slow-close hydraulic slide finger
FOCUS
Coarse adjustment: range of 18mm
Fine adjustment: graduation of 0.001mm
Tension control knob
ILLUMINATION
Movable Abbe condenser, NA 1.25
Iris Diaphragm
LED provides 50,000 hours of light and consistent even brightness
Variable light adjustment
Simple Kohler illumination
90-240V / 50-60Hz automatic-switching power input
OPTIONS
50x oil objective
60x dry objective
Phase contrast
Darkfield condenser (dry)
Simple polarizer,
WF 16X/15mm eyepieces
WEIGHT AND DIMENSIONS
Height: 16 in (406 mm)
Length: 15 in (381 mm)
Width: 8.5 in (216 mm)
Weight: 14.2 lbs (6.4 kg)
PACKAGE DIMENSIONS
21 lbs (9.5 kg)
21 in x 16 in 13 in (533 mm x 406 mm x 330mm)
OPTIONAL HARD CARRY CASE
15 lbs (6.8 kg)
22 in x 18 in 12 in (559 mm x 457 mm x 305mm)

Package Contents:

LW Scientific Innovation Biological Trinocular Microscope With LED Illumination
BioVIEW HD1080+ Camera and Monitor
C-Mount Adapter
HDMI Cable
USB220-ATA / USB2.0 A cable - 2 meter
USB Mouse
8G SD Card
CD with camera driver and software
Pair of Low Profile Eyeguard
Pair of High Profile Eyeguards
Dust Cover
Manual
