Meiji Techno Stereo Microscope 1X and 3X ObjectiveTurret Style
Tap Tap to Zoom
Product Discontinued by Manufacturer
Meiji Techno Stereo Microscope 1X and 3X ObjectiveTurret Style has been discontinued by Meiji Techno and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Meiji Techno Stereo Microscope 1X and 3X ObjectiveTurret Style

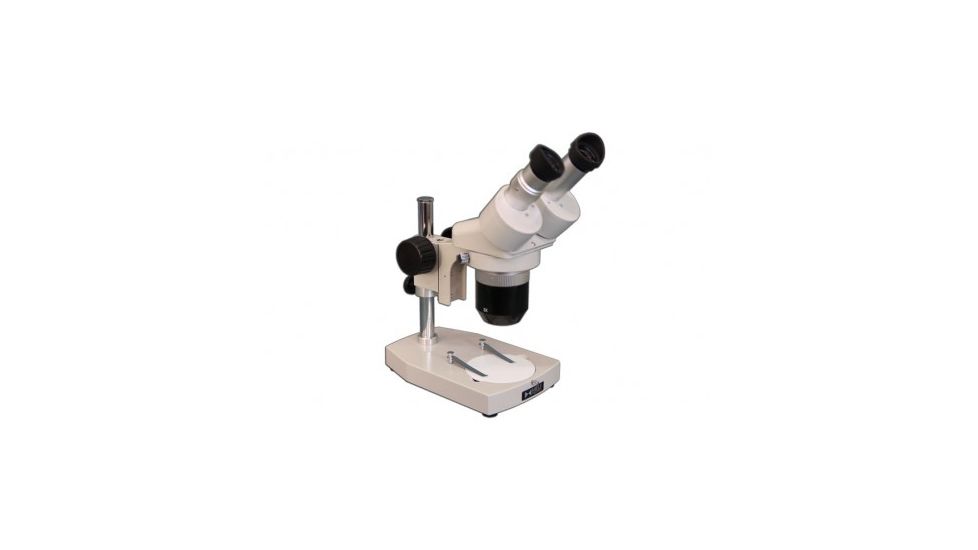

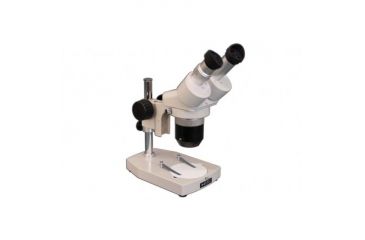

The Meiji Techno EMT-2 Turret Stereo Microscope has 2 magnfications, 10x and 30x, (with 10x eyepieces) changed by a one touch power switch. The power switch activates the turret objective changer at a distance from the stage minimizing the possiblity of contamination to the object being viewed. With a long 81mm working distnace the Meiji Techno EMT-1 Microscope is perfect for production inspection, dental labs, gemology, forensics, and many other applications which require a clean crisp 3D image. Basic components for this configuration include the P stand - the basic pole stand with the F focusing holder. The MA502 eyepieces included in the basic combination are 10x, F.N. 23, Eye Relief 16.0, F.L. 25.0.
If you require a lighted stand, a larger base with an articulated arm, or if you wish to change magnification with other power eyepieces please click on the green Customize button above for many stand, eyepiece, and lighting options
Specifications for Meiji Techno Stereo Microscope 1X and 3X ObjectiveTurret Style:
| Magnification: | 10x, 30x (10x eyepieces) |
| Objective Lens: | Brass Construction |
| Paired Objectives: | 1x, 3x |
| Field of View: | 23mm, 7.6mm |
| Working distance: | 81mm |
| Eyetube Inclination: | 45° |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adjustment: | Left Eyetube |
| Extended Mag Range: | 5x - 180x (with optional eyepieces and auxiliary lenses) |
| Extended Working Distances: | 21mm - 108mm (With eyepieces) |
| Optional Auxiliary Lens: | 0.5X (108mm W.D), 0.75X (72 mm W.D.), 1.5X (35mm W.D.), 2X (21mm W.D.) |
| Mounting: | Fits 84.5mm Diameter Focus Holders |
| Manufacturer: | MADE IN JAPAN |
| Warranty: | LIMITED LIFETIME WARRANTY |
Package Contents:
- EMT-2 Sereo Microscope Head
- P Pole Stand with F focusing Holder and Reversible Black/White Stage Plate
- 2 MA502 Super Widefield Eyepieces 10x F.N. 23.0 with 25mm Reticle Mount
- Meiji Techno Dust Cover (MA703)
- Rubber Eyeguards/Eyeshields (Paired) (MA600)
- EMT, EMF, EMX Meiji Techno Instruction Manual
- Limited Lifetime Warranty Card
