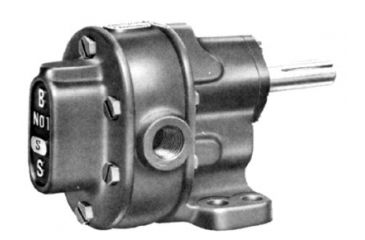

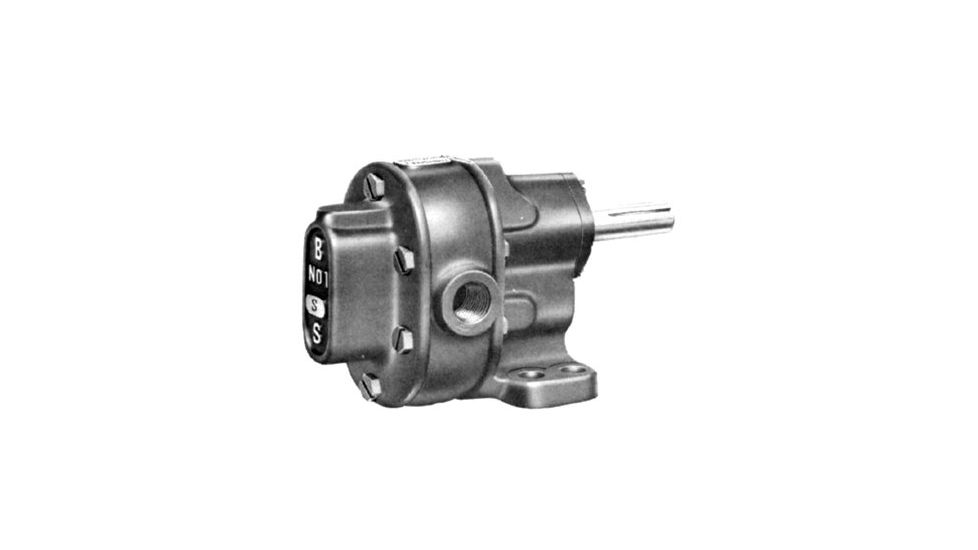

BSM Pump 1s Rotary Gear Pump Footmtg Wo 117-713-10-2, Unit EA
Tap Tap to Zoom
Product Discontinued by Manufacturer
BSM Pump 1s Rotary Gear Pump Footmtg Wo 117-713-10-2 has been discontinued by BSM Pump and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Laboratory vacuum pumps yourself to try and find the perfect replacement for you!
Product Info for BSM Pump 1s Rotary Gear Pump Footmtg Wo 117-713-10-2
Specifications for BSM Pump 1s Rotary Gear Pump Footmtg Wo 117-713-10-2:
| Catalog number: | 300077-156 |
| Type: | Without Relief Valve; With Relief Valve |
| Description: | 300077-156; 300077-158; 300077-166; 300077-168; 300077-170; 300077-172; 300077-180; 300077-182; 300077-184; 300077-186 |
| Gear Type: | Helical |
| Gear material: | Steel |
| Housing Material: | Iron |
| Mounting: | Pedestal |
| Rotation: | CW; CCW |
| Height: | 3.690 in |
| Shaft Diameter: | 0.56 in |
| Length: | 6 1/4 in |
| Speed: | 1725 rpm Max |
| Weight: | 6 lb |
| Width: | 3 in |
| Displacement: | 0.00260 Gals/Rev |
| 0 PSI Flow / Power: | 4.5 gal/min @ 0.14 hp |
| 100 PSI Flow / Power: | 4.3 gal/min @ 0.48 hp |
| 200 PSI Flow / Power: | 4.0 gal/min @ 0.95 hp |
| 50 PSI Flow / Power: | 4.4 gal/min @ 0.29 hp |
| Port Size: | 0.38 in |
| Shaft Height: | 2.38 in |
| Slip gpm/psi: | 0.0024 |
| Supplier No.: | 117-713-10-2 |
Package Contents:
- BSM Pump 1s Rotary Gear Pump Footmtg Wo 117-713-10-2 / 300077-156
