UNICO SQ4802 SpectroQuest Double Beam Scanning Spectrophotometer, 110V w/ Free Shipping
Tap Tap to Zoom
Code: UI-SE-SQ4802
MPN: SQ4802

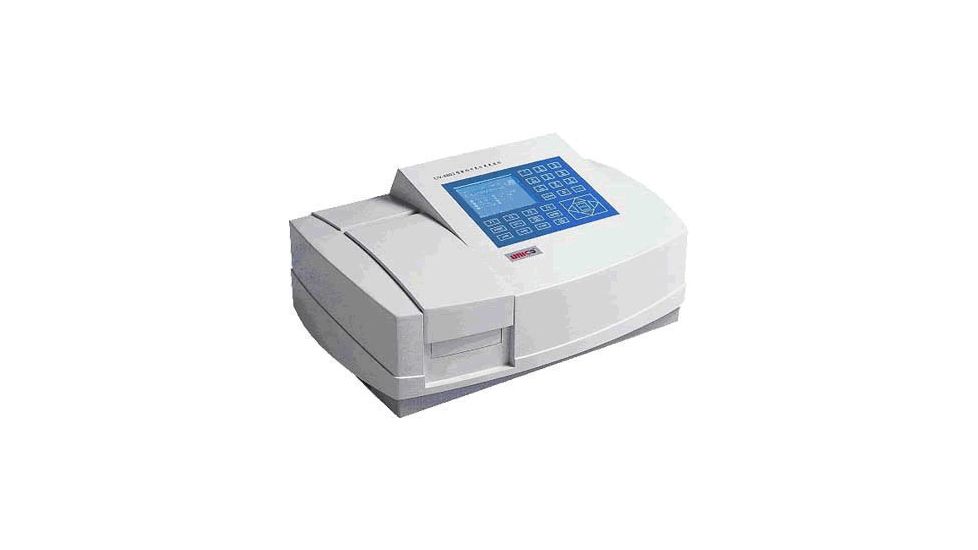

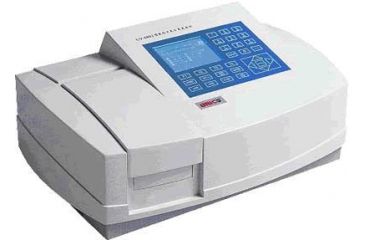

Product Info for UNICO SQ4802 SpectroQuest Double Beam Scanning Spectrophotometer, 110V
UNICO Spectro-Quest UV-Vis Double Beam Scanning Spectrophotometer SQ4802 110-Volt is a double beam design spectrophotometer. It is a stand-alone model with 1.8 nm fixed bandwidth and has all the features that SpectroQuest line of UNICO Spectrophotometers offers in a stand-alone unit. The two detectors are measuring sample and reference respectively and simultaneously for optimizing measurement accuracy. It provides excellent performance for measurements in the range of 190nm to 1100nm. The UV Spectrophotometer is suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analyses, kinetics, spectrum scanning, multiple components and DNA/Protein. UNICO offers optional PC download software and PC Windows application software make this Spectrophotometers versatile.
In addition to the UNICO Model SQ4802 Spectro Quest Scanning Double Beam Spectrophotometer, we carry a full complement of Spectrophotometers as well as other medical lab equipment from UNICO. Our science and laboratory equipment catalog carries everything for your laboratory needs, from microscopes and centrifuges to cuvettes and test tubes. We bring you the full manufacturer's warranty in addition to our own 100% Satisfaction Guarantee. We offer Free Shipping on all orders in our store over $49.
Specifications for UNICO Double Beam Scanning Spectrophotometer:
| Wavelength Range: | 190 - 1100 nm |
| Spectral Bandwidth: | 1.8 nm |
| Monochromator: | Double beam Littrow type, grating 1200 lines/mm |
| Wavelength Accuracy: | ±0.3 nm |
| Wavelength Repeatability: | ±0.2 nm |
| Wavelength Calibration: | automatic at start |
| Light Source: | Tungsten Halogen/Deuterium Lamp |
| Detector: | Solid Silicon Photodiode |
| Photometric Readout: | 1/4 VGA 320X240 pixels backlit LCD |
| Photometric Range: | 0 - 200%T -0.3 - 3.0A 0 - 9999C |
| Photometric Accuracy: | ±0.3%T |
| Zero Drift: | < 0.002A per hour after warm-up |
| Baseline Flatness: | ±0.004A |
| Stability: | 0.001A/h at 500 nm |
| Stray Light: | < 0.15%T |
| Scanning Speed: | Hi, Med., Low. Max. 1000 nm/min |
| Standard Sample Holder: | Single Cell Holder |
| Analogue/Digital Output: | Digital, RS232 Serial, Centronics Parallel |
| Dimensions: | 620(L) x 400(W) x 280(H) mm |
| Weight: | 24 kg / 53lbs |
| Shipping Dimensions: | 720(L) x 525(W) x 370(H) mm |
| Shipping Weight: | 28 kg / 62 lbs |
| Power Requirements: | 110V/60Hz switchable |
| Humidity Range: | less than 85% |
| Safety Certificate: | CE |
Features of UNICO SQ4802 Spectro-Quest UV / Visible Scanning Spectrophotometer:
- Double beam design
- Stand-alone unit
- Versatile
Package Contents:
- UNICO Spectro-Quest UV-Vis Double Beam Scanning Spectrophotometer, 110V SQ4802
