Code: VW-9MG-986955
MPN: 986955

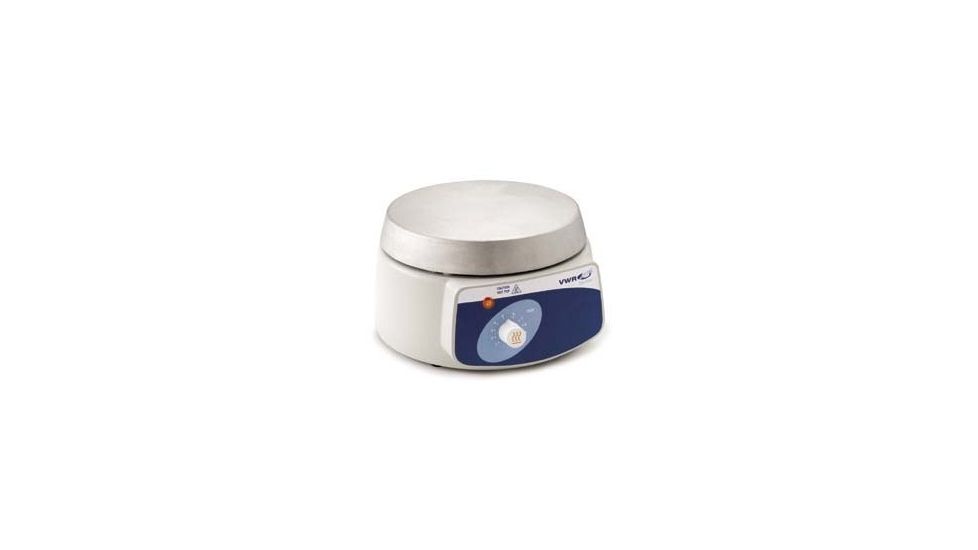

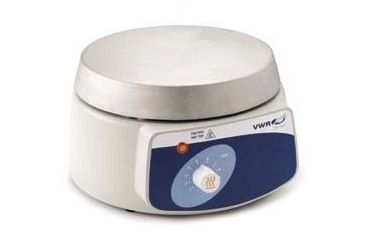

VWR Dylatherm Hot Plate is a reliable and dependable addition to the VWR Laboratory Apparatus family of products. Combining top-notch and uncompromising quality with an affordable price, the VWR Dylatherm Hot Plate 986955/ 12620-980 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
The economical Dylatherm hot plate features a large 16.5cm (61/2") diameter cast aluminum top plate that provides an even heating surface capable of heating 1500mL of water. Bimetallic thermostat offers reliable and repeatable temperature control. Powerful heater reaches maximum temperature in minutes. Indicator light illuminates when unit is on.
Built-in support rod holder with locking knob accepts optional support rod and clamp kit for mounting thermometers and temperature probes. Kit includes 45.7cm (18") support rod, thermometer extension clamp, three-prong medium swivel clamp, and hook connector. Optional support plate allows hot plate to be mounted to lab frames or ring stands.
UL and C-UL listed. CE marked.
Ordering Information: Units include a 1.8m (72") three-wire electrical cord with plug. The 230V unit is supplied with a European-style plug.
Electrical:Â | 230V, 50/60Hz, 5A, 575W | |
Temperature Range: | to 400°C (752°F) | |
Dimensions, Top Plate:Â | 16.5 cm (61/2") diameter | |
Dimensions, Overall:Â | 22.2W x 20.3H x 12D cm (83/4 x 8 x 43/4") | |
Dimensions, Shipping Weight:Â | 2 kg (4.6 lbs) | |
