Code: BY-9BG-230301V
MPN: 230301V

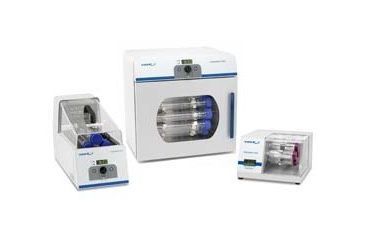

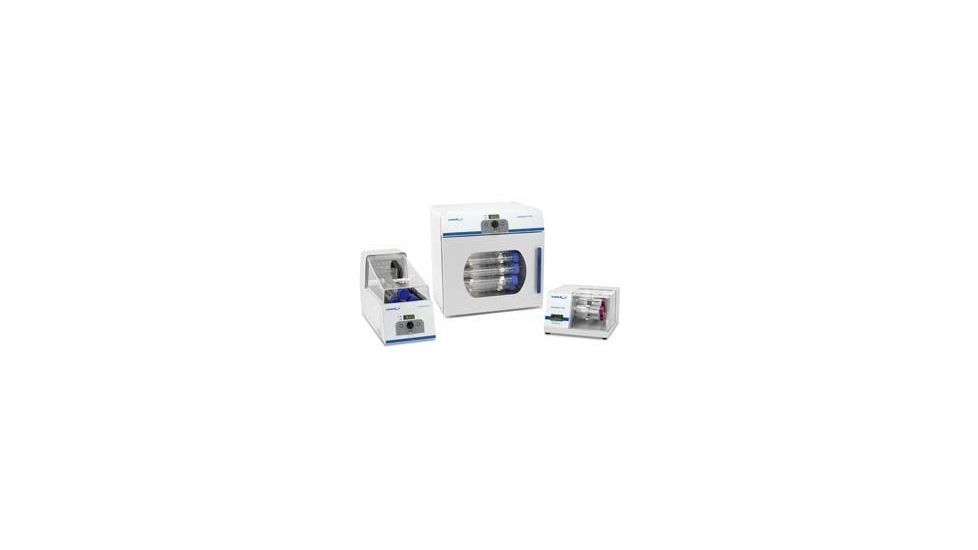

VWR Hybridization Ovens Hybridization Oven, Model 5430 is a reliable and dependable addition to the VWR Baths, Ovens, Incubators, and Cryogenics Storage family of products. Combining top-notch and uncompromising quality with an affordable price, the VWR Hybridization Ovens Hybridization Oven, Model 5430 230301V/ 47746-130 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
Designed to provide rapid heat-up, excellent temperature stability, and efficient mixing for all types of hybridization and incubation applications.
Model 5430, a space-saving mini unit, holds up to four 50mL conical tubes. Optional multi-tube carousel (47746-116) includes clips to hold twelve 1.5mL or 2.0mL conical tubes, six 15mL conical tubes, or four 50mL conical tubes. Unit heats from ambient to 70°C in 25 minutes.
Model 5400, a medium-capacity unit, has a capacity of up to four 35x300mm bottles or eight 35x150mm bottles. Unit features a removable beta-blocking lid made of 9.5mm (3/8") thick molded acrylic with a novel “trap door” to facilitate loading and unloading without removing the lid. Unit heats from ambient to 65°C in 23 minutes. Optional multi-tube carousel (47746-114) holds forty 1.5mL or 2.0mL conical tubes, twelve 15mL conical tubes, or ten 50mL conical tubes.
Model 5420 and 5420-2 are high-capacity units, holding up to ten 35x300mm bottles or twenty 35x150mm bottles. Optional large bottle carousel (47746-110) holds four 70x220mm (750mL) bottles or four 55x180mm (400mL) bottles. Optional multi-tube carousel (47746-112) holds one hundred 1.5mL or 2.0mL conical tubes, thirty-five 15mL conical tubes, or thirty 50mL conical tubes. Optional microplate carousel (47746-118) holds 10 sealed standard microplates or deep well plates. Oven can be converted to a platform rocker with the optional rocker platform attachment (47746-108). Unit heats from ambient to 65°C in 30 minutes.
Model 5400 and 5420 ovens are UL and C-UL listed. Model 5400 and 5420-2 ovens are CE marked.
Note: Model 5430 is not recommended for use with polystyrene tubes.
Ordering Information: Model 5420 includes four standard 35x300mm glass hybridization bottles, four spare O-rings, and a stainless steel drip pan. For Model 5400 and 5420 optional multi-tube carousels, please order clips separately. Glass bottles are supplied with blue caps and silicone O-rings for standard procedures or red caps and PTFE seals for high temperature procedures. Acrylic bottles are constructed of beta-blocking acrylic and are supplied with caps and leakproof gaskets. For 230V capability, contact our sales representative.
Description: | Hybridization Oven, Model 5430 | |
RotationSpeed, rpm: | 6–20 | |
Electrical: | 115V, 50/60Hz, 90W | |
ShippingWeight, kg (lbs.): | 5.9 (13) | |
