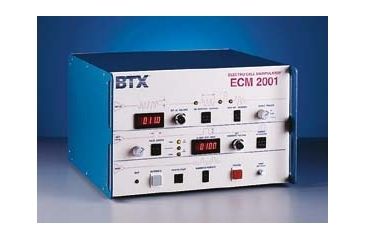

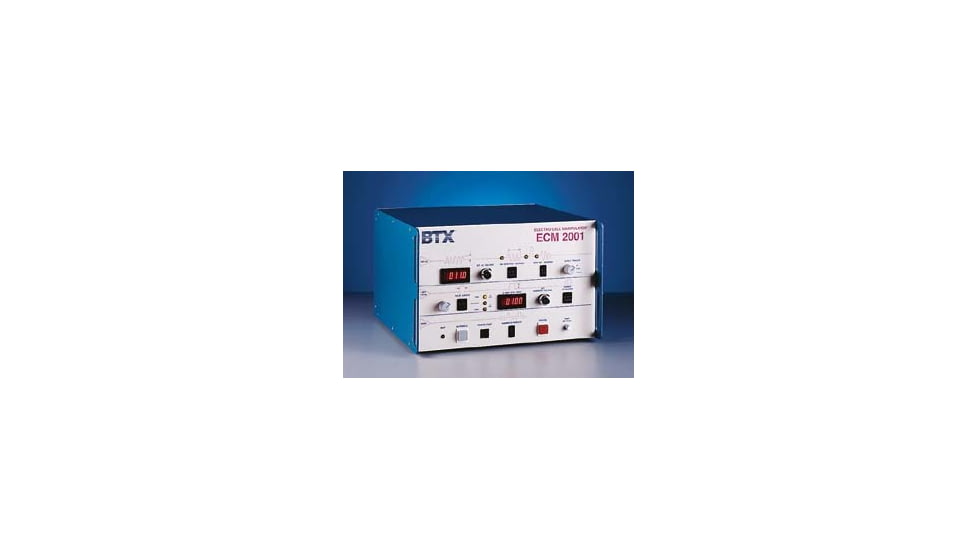

Name: Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010
Brand: Harvard Apparatus
SKU: MA5-91D-45-0010
Availability: Discontinued

Product Info for Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010

Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010 / 58018-008 is part of a wide selection of Harvard Apparatus Electroporation cuvettes. Combining excellent quality with an affordable price, the Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010 / 58018-008 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Electroporation cuvettes please do not hesitate to contact our customer service for further guidance.

Electroporation and electro cell fusion in one instrument. Ideal for animal embryo cloning; hybridoma and quadroma production; plant protoplast fusion for transgenic plant generations; and electroporation of plant cells, mammalian cells, bacteria, yeast, and fungi.

Unit generates an AC wave form for benign dielectrophoretic alignment of cells. The 1mHz AC pulse aligns cells in real time. Efficient fusion is achieved by the AC/DC microsecond switch-over time. After fusion, AC reapplication keeps cells together for the rounding off process.

With its wide range of voltages and pulse lengths, the 3000V DC square pulse section can be used as a stand-alone electroporation system, capable of operating into low impedance loads. Number of pulses is 0-9.

Systems feature manual and automatic start. Capability for up to nine sequence repeats, which allows expansion of parameters for future applications. Serial RS232C port for printer connection.

Specifications for Harvard Apparatus Ecm 2001 Electro Cell Fusion 45-0010:

Description:	Cell Fusion System
BTX No.:	45-0010
Unit:	Each
Properties:
AC Parameters
Frequency:	1 MHz, fixed
Voltage (zero-peak):	0-75V
Duration:	0-99 seconds
Post-fusion AC Amplitude:	1/10 of prefusion amplitude
Post-fusion Ramp:	0-9 seconds
Pause Between AC and DC:	50 µsec
DC Pulse Parameters
High Voltage Mode:	500-3000V
High Voltage Mode Pulse Length:	1-99 µsec.
Low Voltage Mode:	10-500V
Low Voltage Mode Pulse Length:	0.01-0.99 msec. (lowest range)
Power:	100/115V, single phase
Fuse:	7A slow blow
Dimensions:	43W x 27.9H x 39.7D cm (17 x 11 x 151/2")
Weight:	21.3 kg (47 lbs.)

(Please note that the description and stock photo may not correspond to the specific model listed above)
